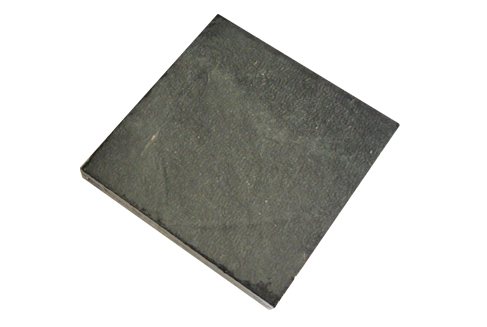

Bitumen Impregnated Softboard


Click to Enlarge

  • Jolly Bitulex Softboard is processed from cane fibre, the raw material tested and proven to provide the best resilience. Impregnated with Bitumen in various percentages, it is a perfect base material for expansion joint fillers.

    The board's compression and recovery characteristics confirm to the U.K., U.S.A. and Indian Standards much above the required averages.

    Jolly Board Expansion Joint Filler :
    Jolly Board Expansion Joint Filler is manufactured from water resistant, bitumen impregnated, cane fibre. It is available in a wide range of sizes, both as boards & strips in thicknesses of 10 MM, 12 MM, 18 MM, 19 MM, 25 MM.

    Jolly Expansion Joint Filler displays excellent resistance to compression, with outstanding recovery characteristics. The fillers are environment friendly as opposed to the environment destroying thermocole/plastic expansion joint filler.

    Applications:
    • External wall cladding: Filling structural expansion & structural separation joints in block & insitu concrete construction.
    • Traffic surfaces: Filling expansion joints in motorways,roads,runways,pedestrian areas, bridges, curbs etc.
    • Internal surfaces: Filling expansion joints across concrete floors, including screed floors with underfloor heating.
    • Roofs & floor finishes : Ideal for filling expansion joints in concrete floors.
    • Building superstructures: Filling expansion joints in basements, retaining walls, site slabs, subways & other water excluding structures.
    • Reinforced concrete structures:Expansion joint fillers in piers and lateral supports like abutments.
    • Expansion strips: Against existing or between adjacent constructions and insets in concrete paving like drains, manholes, etc.
    • Industrial Flooring
    • Internal finishes: Various other flat works and concrete floors according to the state of the art and local regulations.

    Physical Properties:
    Jolly Bitulex Expansion Joint Fillers conform to the following required standards
    • ASTM -D. 1751-83/D.545 - 84 Testing
      `concrete paving and structural construction'
      `pre-formed expansion Joint Fillers for concrete'
      Department of Transport - London 1986: `specification to highway works, part 3, clause 1015'
    • B.S. 1142 for Standard Specifications for Expansion Joint Fillers.
    • IS 1838(Part-I) 1983 Standard Test of Expansion Joint Fillers.

    Strong points and performance characteristics:
    Compression to 50% thickness in the initial state :- Recovery is 80/84%

    Weathering and compression     to 50% thickness : - Recovery is 70/76%. Jolly Bitulex returns to more than 70% of its original thickness after three applications of pressure sufficient to reduce its thickness by 50%

    Extrusion: No effect (0.75 mm)

    Unaffected by temperature changes

    Low moisture absorption due to bitumen impregnation. Standard Bitumen content 10-20-35%. Other possibilities upon request.

    Suggested application details for typical joints
    Ordinary type. Joint Filler is brought flush with the surface and extends full depth of slab. This is the most common type of application.


    Joint using surface capping. Jolly Bitulex Concrete Joint Filler is placed approximately 3/4 of an inch below the surface of the slab. Suitable capping placed flush with concrete surface. Used extensively in highway construction.


    Dowel bar used to preserve alignment of adjacent sections of concrete slab. The joint filler is fabricated to receive dowel bars and the entire joint assembly is placed in position before pouring concrete.


    Joint employing continuous seal either at top or bottom of slab to close joint against hydrostatic pressure.


  • Jolly Expansion Joint Filler In Airport Runway


    Mehod of Using



    Jolly Bitulex is brought flush with the concrete slab and extends full depth of the slab, placed approximately ¾ of an inch below the surface of the concrete slab. A suitable sealant is applied either at the top or bottom of the slab to close the joint against hydrostatic pressure. The dowel bar is used to preserve alignment of adjacent sections of concrete slab. Jolly Bitulex is fabricated to receive dowel bars and the entire joint assembly is placed in position before pouring concrete.

    Jolly Expansion Joint Filler Between Beams & Columns In Building


    Mehod of Using



    A suitable sealant is used flush with Jolly Expansion Joint Fillerboard in between columns and beams of building.

    Jolly Expansion Joint Filler In Bridge


    Mehod of Using



    Jolly Expansion Joint Filler In Road


    Mehod of Using



    To maintain enough tensile strength in the concrete Jolly Expansion Joint Fillerboards are placed in between the slabs to bare the expansion and contraction of steel reinforcing bars, after which

    Jolly Expansion Joint Filler In Sidewalk / Pavement


    Mehod of Using



    Jolly Expansion Joint In Dam Walls


    Mehod of Using
